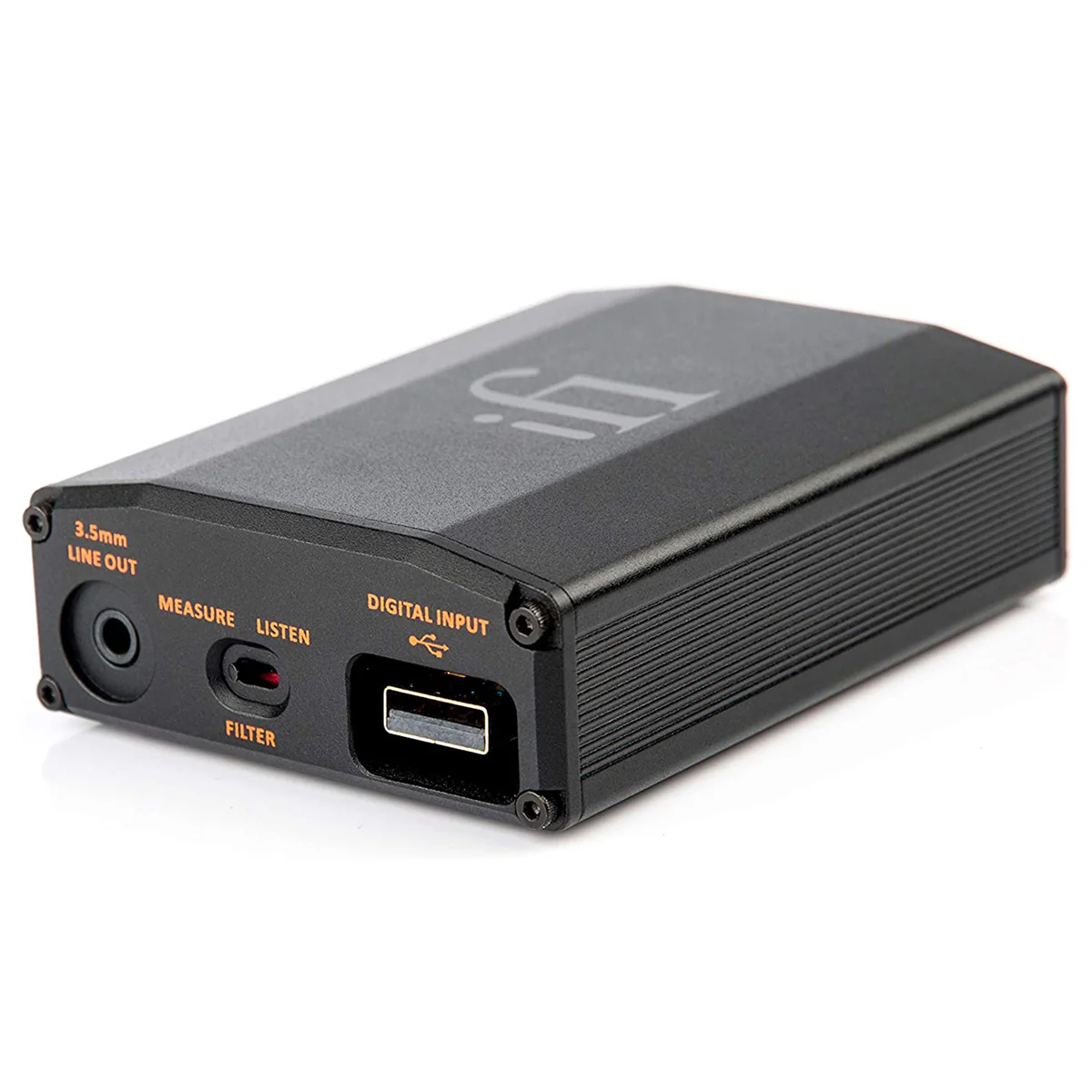

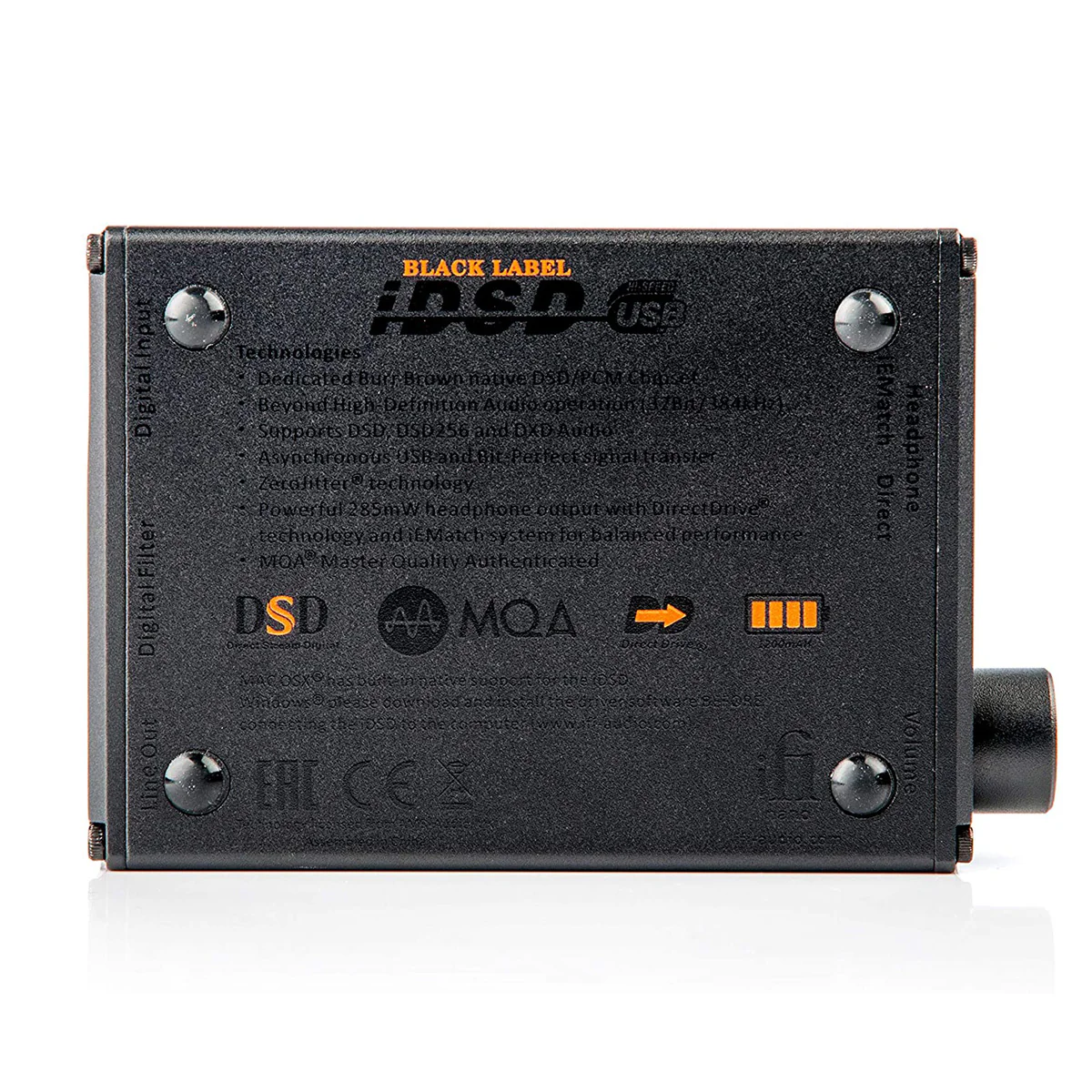

iFi nano iDSD Black Label Portable Headphone AMP/DAC - Discontinued

iFi - iDSD Nano Black Label Portable Headphone AMP/DAC

It’s Powerful
Outputting 10 times more power than a laptop or phone and with a built-in iEMatch, the nano iDSD Black Label can drive any set of headphones or in-ear monitors (IEMs).

It’s Convenient
Small, lightweight and battery powered, the nano iDSD Black Label can go everywhere you go and it won’t drain your phone’s battery.

It’s Master Quality Authenticated
MQA technology makes hi-res audio streaming a reality and delivers studio master quality audio to your headphones.

It’s High-Resolution Certified
The nano iDSD Black Label is one of the most high-resolution DACs on the market. It supports PCM up to 32/384 kHz and DSD up to 256 times the sample rate of a CD. It is also certified as ‘High-Res Audio’ by the Japan Electronics and Information Technology Industries Association (JEITA) and Japan Audio Society (JAS).

It’s Flexible
It’s the only portable DAC that lets you choose between the “Listen” (minimum phase Bezier Filter) and “Measure” (linear phase Transient Aligned Filter) options.

It’s Compatible
The nano iDSD Black Label includes iEMatch to let you choose how much power to apply to your headphones, so it matches sensitive IEMs as well as larger headphones.

What's new with iDSD nano Black Label?
1. The integrated iPurifier adds noise isolation for USB Input.
2. The new OTG ‘A-Type’ USB input links seamlessly with iPhone/smartphones and tablets.
3. The analogue stage features dual-mono design and a dedicated fixed level line out.
4. S-Balanced wiring system for the headphone outputs. This gives the full benefit of balanced outputs when used with headphones/IEMs fitted with balanced wiring with low noise and distortion. Even cuts crosstalk in half for unbalanced headphones.

The nano iDSD Black Label, while very affordable, is packed to the rafters with boutique components.

General
Input(rear):	USB2.0 type A ‘OTG’ Socket (with iPurifier® technology built-in)
Output(rear)；	1 x audio fixed line out L+R 3.5mm
Digital Filter:	2 positions. 2 filters
Outputs(front):	2 x 3.5mm headphone audio outputs. ‘Direct’ and ‘iEMatch®’
DAC
DAC:	DSD, DXD, PCM DAC by Burr Brown Bit-Perfect DSD processing, Bit-Perfect DXD processing
Clock:	Low-jitter crystal clock
Audio Formats:	DSD 256/128/64/12.4/11.2/6.2/5.6/3.1/2.8
	DXD 384/352.8kHz
	PCM 384/352.8/192/176.4/96/88.2/48/44.1kHz
	MQA 88.2/96/176.4/192kHz filters
Filter–PCM:	Listen (transient optimised minimum phase)
	Measure (frequency response optmised)
–DSD:	Listen (extended bandwidth transient optimised)
	Measure (narrow bandwidth, low output band noise optimised)
–DXD:	Fixed Bit-Perfect Processing
–MQA:	Fixed MQA Filter
