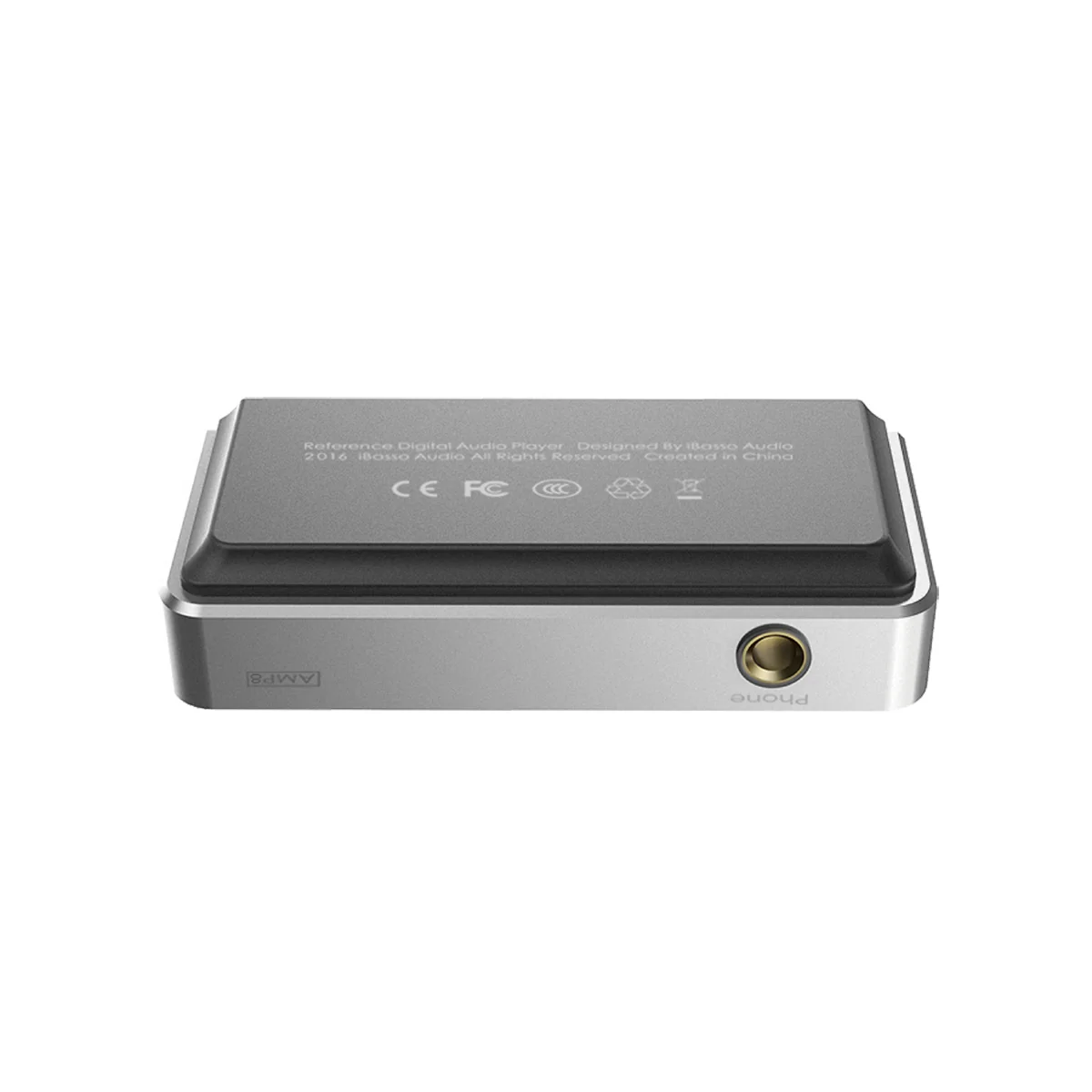

iBasso AMP8 4.4mm Balanced Module for DX220, DX200, and DX150
iBasso AMP8 4.4mm Balanced Discrete Amp
+/- high voltage swing. This significantly improves dynamics and headroom, resulting in a more accurate sound that is ture to the recording

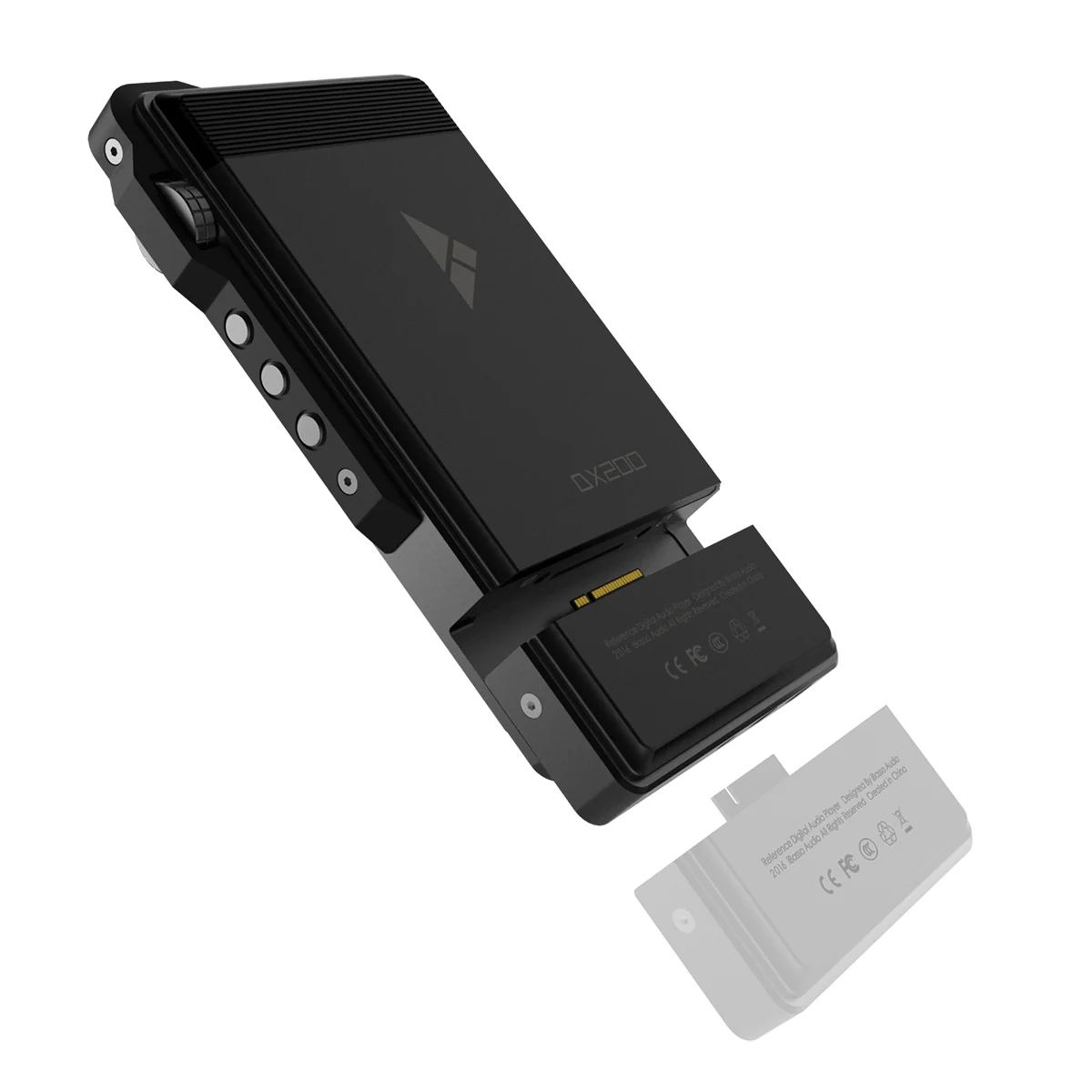

AMP8 is a complete new discrete circle design that is dedicated to the DX150/DX200 and features both a high voltage and current output. High current output is very useful for low impedance multi drivers in-ear monitors
Low VCE transistors are utilized and are manually sorted and paired, providing better consistency and linearity. The low VCE also expands the linearity range.
The transistors used on the buffer stage have a 2700mAh output current rating, which allows the AMP8 to drive IEMs and headphones that require high current with ease.
A pentaconn 4.4mm balanced output port is used. The large double contact area of this socket contact lowers resistance and allows better current transmission.
Specification
Output Voltage: 6.2Vrms
Frequency response:15Hz-45KHz+/-0.3dB
S/N:125dB
THD+N:0.00023%,-113dB(no [email protected])
0.00023%,-113dB(300Ω@2.5Vrms)
Output Impedance: 0.38ohm
DNR:125dB
Crosstalk:-120dB
Average play time：7 hours palay time varies with different sample/bit rates, volume and headphone/IEM loads.
